Extruded Aluminum Spar Material

from $149.94

All SPARS are proven strength – 6061-T6 extruded aluminum with an ultimate yield in tension of 45,000 PSI and in shear of 30,000 PSI.

Note: 1/8″ tolerance on cuts

Liability Disclaimer
Liability for use of this product lies solely with the individual and the application chosen for its use. No claims, warranties or guarantees are implied other than the product is as represented in material and structure.

SKU:

All SPARS are proven strength – 6061-T6 extruded aluminum with an ultimate yield in tension of 45,000 PSI and in shear of 30,000 PSI.

Note: 1/8″ tolerance on cuts

Liability Disclaimer
Liability for use of this product lies solely with the individual and the application chosen for its use. No claims, warranties or guarantees are implied other than the product is as represented in material and structure.

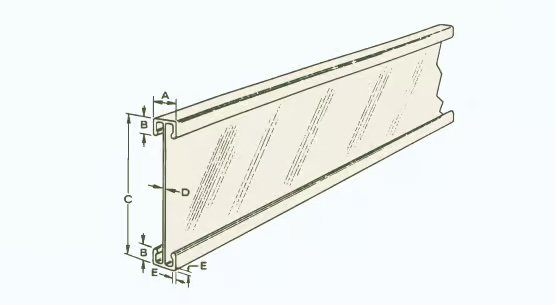

SKU A B C D E Length Weight Price
SPR5-B .812" .500" 4.500" .060" .075" 16' 3" 10# 8oz $207.90
SPR5-A .812" .500" 6.625" .080" .090" 17' 0" 17# 10oz $249.48
SPR4-B .812" .500" 3.000" .060" .075" 14' 0" 6# 10oz $N/A
SPR4-A .812" .500" 4.500" .060" .075" 14' 0" 9# 3oz $181.44
SPR3-B .812" .500" 4.000" .060" .075" 16' 3" 10# 3oz $195.30
SPR3-A .812" .500" 5.687" .075" .090" 17' 0" 15# 8oz $221.76
SPR2-B .812" .500" 3.000" .060" .075" 12' 0" 7# 13oz $149.94
SPR2-A .812" .500" 4.000" .060" .075" 12' 0" 8# 12oz $167.58
SPR1-B .812" .500" 3.812" .049" .060" 14' 0" 6# 12oz $151.20
SPR1-A .812" .500" 5.687" .060" .075" 14' 2" 11# 13oz $189.00
